How To Check Aircooled VW Spark Plugs

You can tell an awful lot about how your air-cooled VW engine is running from the condition of your spark plugs, so it’s worth checking them every so often. Here's how to check your aircooled VW spark plus, which will help you become an expert…

The right spark plug tool for the job

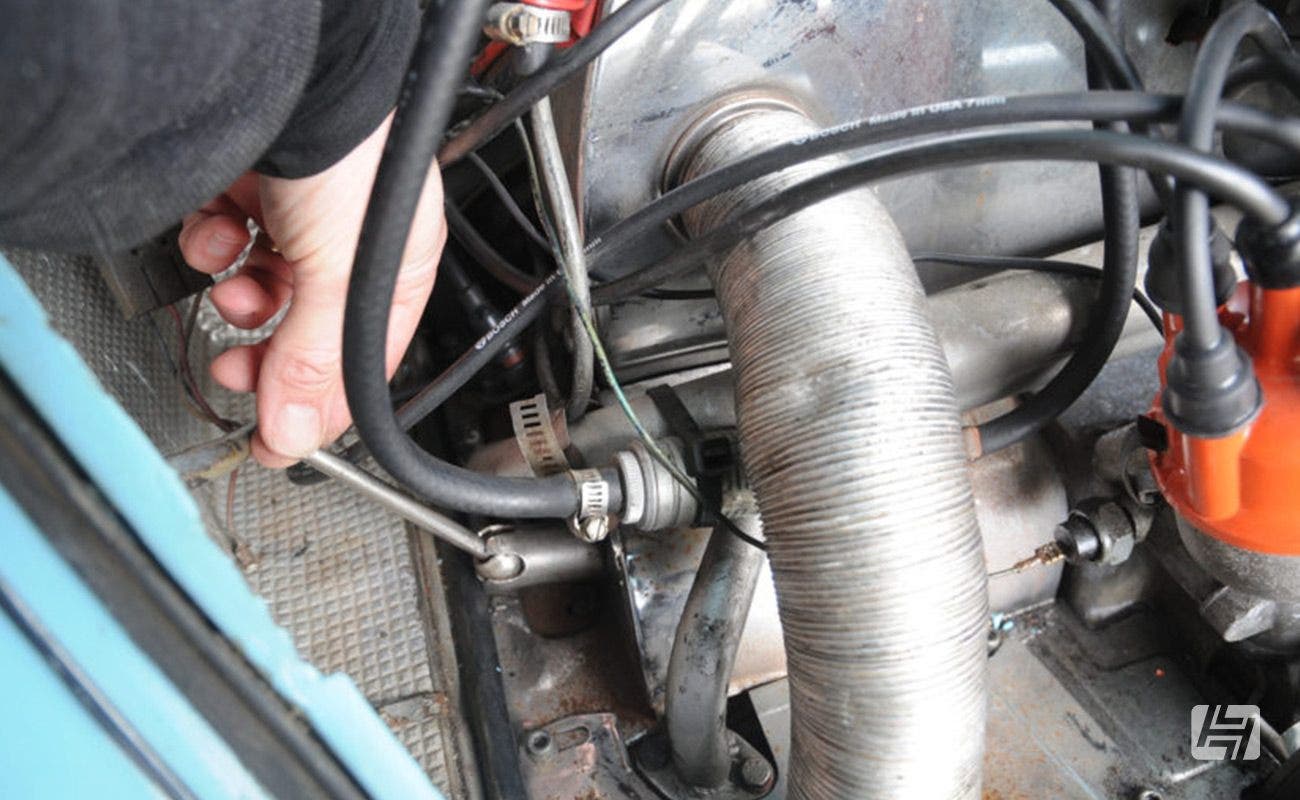

Before getting going, it’s helpful having the right tools at hand because accessing the rear two plugs (cylinder numbers 1 and 3) can be a real fiddle, especially on later twin-port engines where access is further compromised. Try a stumpy 21mm socket with a universal joint which may give you a bit more flexibility.

Carefully removing aircooled HT leads

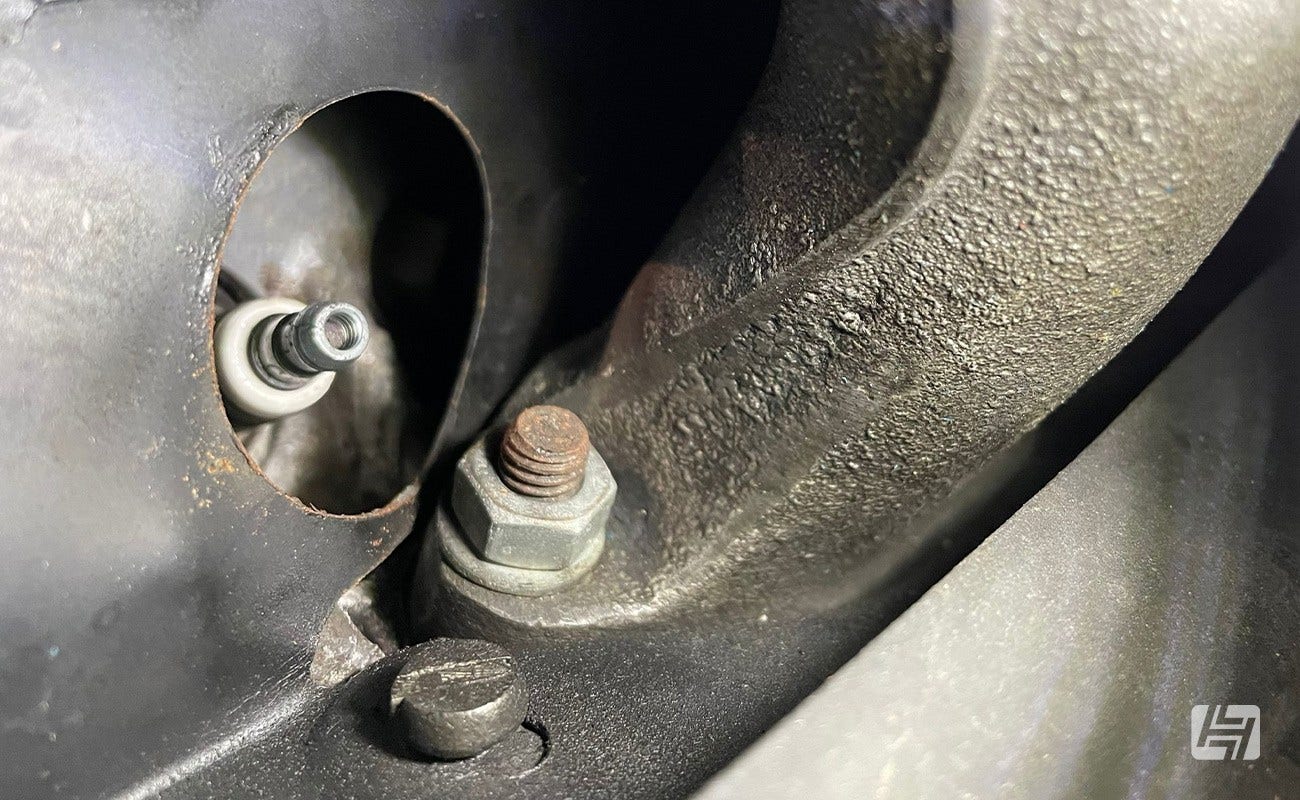

When removing the ignition leads from the plug, be sure to pull it off by the Bakelite connector, not the lead itself, as you’ll run the risk of pulling it off. Make sure you have the socket on the plug properly when you’re undoing them and always start screwing the plug back in by hand, only using the socket for the final tightening. If you feel any resistance early on, unscrew and carefully try again so you don’t run the risk of causing damage to the threads in the cylinder head. Obviously, it’s best to do all this while the engine is cold to avoid burning yourself!

Don't mix up the firing order

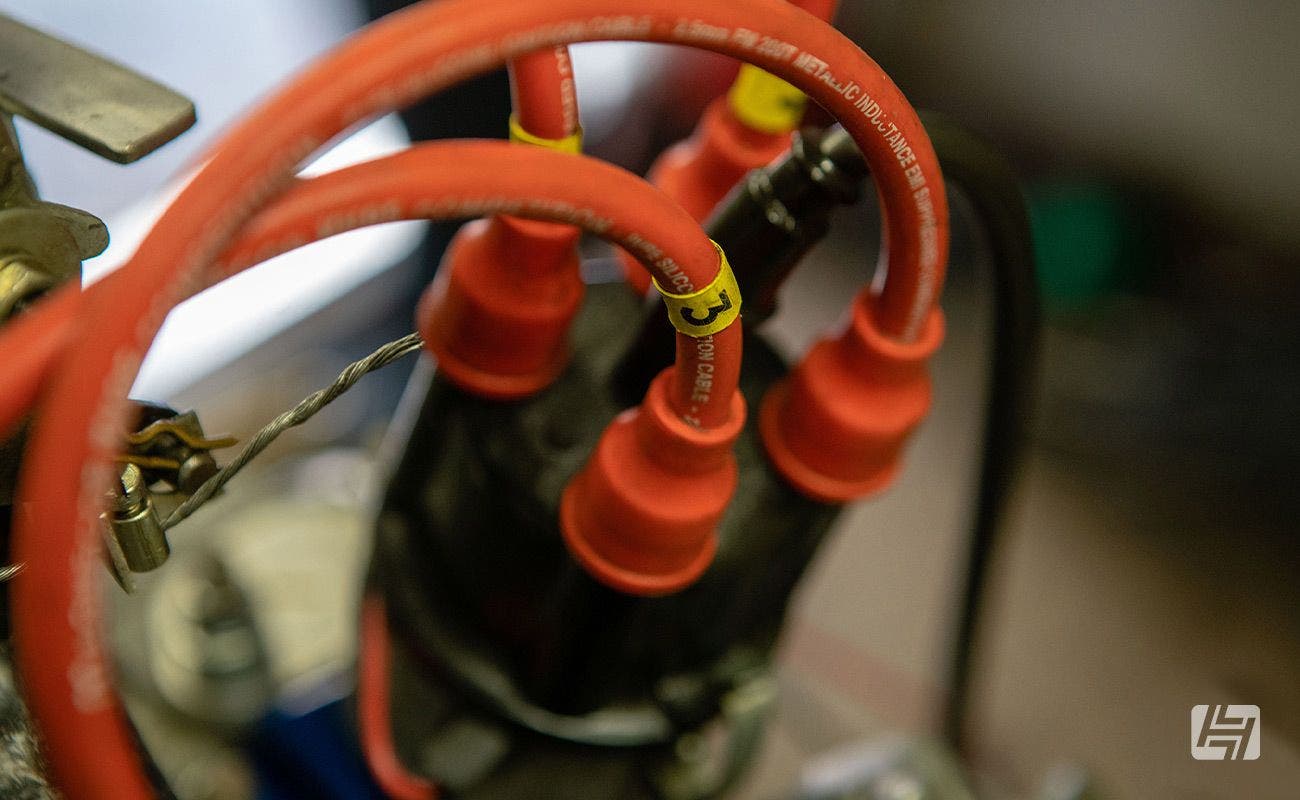

A good tip here is to remove each lead and aircooled VW spark plug individually so you don’t get them mixed up. If you notice any damage to the connector, or if the lead is a loose fit then it is best to source a brand new HT lead set.

Should it all go wrong, the Type 1 VW engine follows a 1-4-3-2 pattern, to help you get things back to normal again!

What should my old spark plugs look like?

Once the plug is out, take a good look. Is it brown, grey, sooty or oily? If the engine is running right, it should be light brown or grey. If it is sooty but dry, your engine is running rich and not burning all the fuel. Conversely, if the insulator’s white and flaky then your engine is running too lean. Either way, you’ll need to tune your carb to adjust the fuel/air mixture.

If the plug is wet and oily, there are a couple of possibilities. The first is that you’re not getting a spark, in which case you may have noticed a misfire. If this is the case, check the HT lead connection at the plug and also where it pushes into the top of the distributor cap. A worse scenario is that your engine has worn piston rings and/or valve guides, which means a rebuild is on the cards. If there is serious carbon build up on the plug, or what looks like molten bits of metal, chances are your ignition timing is out.

Can you clean spark plugs and reuse them?

Whatever their condition, while the plugs are out of the engine they will benefit from a good clean up using a brass wire brush. You should keep one of these in your car’s toolbag all the time, as cleaning plugs will often help start a reluctant engine – especially in the winter or when it’s damp. While you are at it, check the spark plug gaps using a feeler gauge. For most Beetles the gap should be 0.024in or 0.6mm. That said, it’s worth checking your workshop manual because the gap will be different on some engines.

If the gap is correct, the gauge should slip in and out without much resistance – you can adjust it with a gentle tap on the workshop floor, or carefully prising open the contact with a flat bladed screwdriver.

When should you replace spark plugs?

Finally, your aircooled VW spark plugs should be checked every 3000 miles and replaced every 10,000 miles, although because they’re so cheap – there is no harm in fitting new ones sooner – especially if you suspect your engine’s not been running quite right.

Ian
