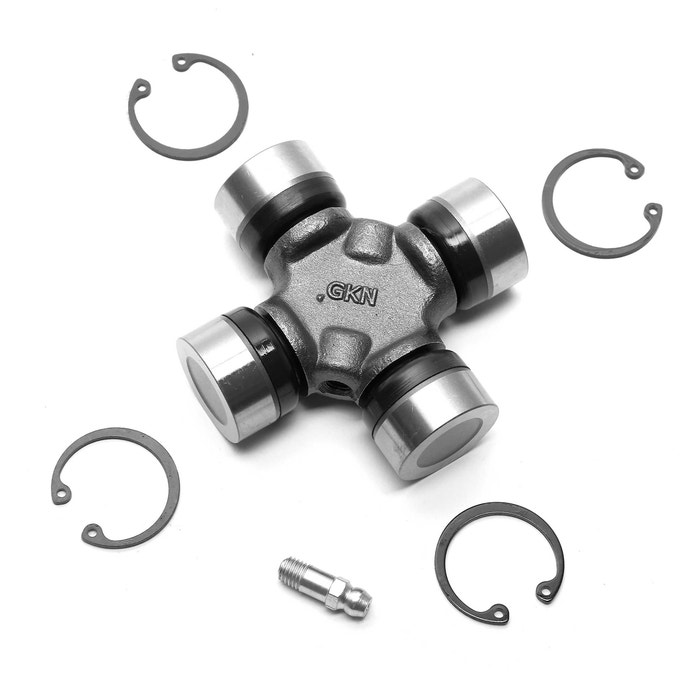

UNIVERSAL JOINT WITH GREASER GKN STANDARD  75x27 16mm JOURNAL

Fits:-

• Series Vehicles Fitted With 75mm Joints
• Defender From Approx 1987 Rear Prop
• Defender From Approx 1987 - 2001 Front Prop
• Defender Puma 2007 110/130 Rear only
• Discovery 1
• Discovery 2 Rear Propshaft & Front (see also E470081 ball seat kit for front)

• Range Rover 1986 up to and including P38A

FEATURES

• Can be retro fitted to other props using 75mm joints that don't have a greaser.

DIMENSIONS

• This joint has a 75mm span, 27mm cap diameter and 16mm  inner journal diameter.

DESCRIPTION

Although this joint was originally fitted to Defender 110  applications, it can be retro fitted to other props using the 75mm joints (RTC3291, RTC3458, RTC4587).

This is a Propshaft Universal Joint GKN manufacture for various Land Rover applications. You may need to be cautious of imported joints that are sometimes sold in the old hardy spicer style green and black boxes, without the Hardy Spicer name. GKN own the official Hardy Spicer brand. Note that this listing is for the GKN standard joint. We do also stock the 75mm Heavy duty version (18mm Journal) and our own budget brand.

Check your vehicle before placing your order, since you may find that your propshaft has already been changed and is using a different sized joint.

Also measure across the span of the UNIVERSAL JOINT the common sizes are approximately 75mm and 82mm.

Important Notes Defender front propshafts from 2001 onwards have a larger universal joint 93mm wide, see part number STC4807 Defender Puma 2007 on this UJ is only suitable for 110/130 rear NOT 90 rear and NOT Front props Defender Puma 2007 on Front have a larger universal joint 95mm wide, see part number TVC500010
