Crankcase 90.5/92mm Cylinders 10mm Case Savers: Beetle (1950-1979), T2 Bus (1968-1979), Split Bus (1950-1967)

SKU
AC1010435

Crankcase 90.5/92mm Cylinders 10mm Case Savers: Beetle (1950-1979), T2 Bus (1968-1979), Split Bus (1950-1967)

SKU
AC1010435
Reviews & Ratings

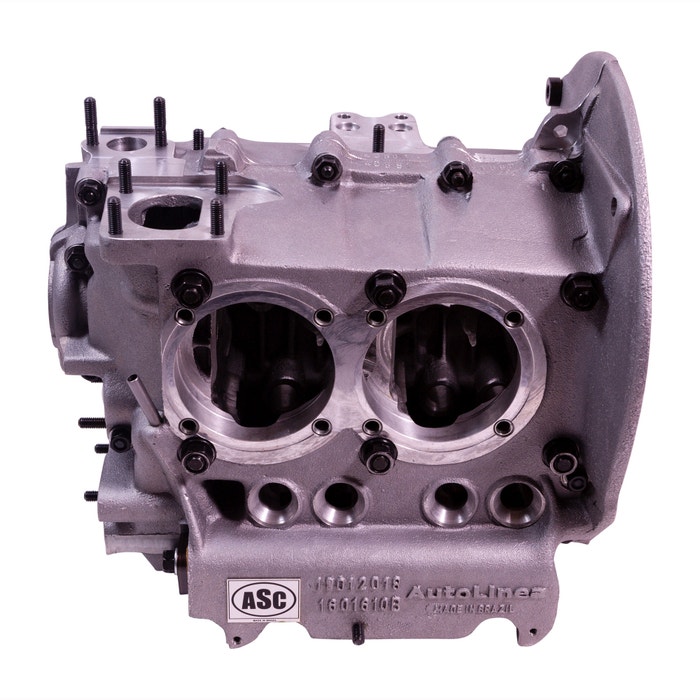

Aluminum Super race crankcase manufactured by Auto Linea.

A universal design with Type 3 oil filler (Blanking plate included) and type 2 engine bar mounts. Manufactured from strong and durable aluminum with the following performance modifications – No machining required. Oil pick up pipes are included
-Drilled and tapped for full flow option - 3/8" NPT thread. Supplied with a pre-installed blanking plug.
-Ready cut for 90.5/92mm barrel and pistons, with 10mm case savers fitted
-The void behind number 3 cylinder is filled in adding strength to this weak area
-The rear oil gallery is fitted with a removable plug for easy cleaning
-Pent roof design for up to 82mm VW journal crankshafts allowing clearance for long stroke cranks without loss of strength, 86mm cranks can be dropped in
-Centre main bearing stud holes are shuffle pinned to prevent movement


Oil pick-up pipe security should always be checked as they are factory assembled but may not be fully tightened

Was $1,419.95 $1,419.95 Now $1,279.23 $1,279.23

Need help?

Contact us


Buy NOW, Pay LATER

Klarna now available in checkout


Out of stock
Autolinea

Warning

This product, and the activities for which this product is intended (including operation, servicing and maintenance of a passenger vehicle or off-road vehicle) can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to https://www.p65warnings.ca.gov

Product Information

Product Attributes
Also known asAC1010435
Fitting InfoOil pick-up pipe security should always be checked as they are factory assembled but may not be fully tightened
MarqueVolkswagen
VehicleBug, Split Bus, Bay Bus, Karmann Ghia, Bug Convertible, Type 3
BrandAutolinea
QualityTop Quality
Unit of saleEach
Standard or UpgradeUpgrade
Weight1.00

Fits Vehicles

Product Vehicle Years
Beetle1950-1979
T2 Bus1968-1979
Split Bus1950-1967
Karmann Ghia1960-1974
Beetle Cabrio1950-1979
Type 31962-1973
Beetle, Panels, Front Body
