Propex Heatsource HS2000 12 volt interior heater kit.

Kit includes:
1x HS2000 12v 30mbar heater
1x Thermostat
1x 3.5 metre thermostat cable
1x 3.5 metre long 12v supply cable
1x 0.75 metre exhaust pipe
1x 1.0 metre combustion inlet pipe
1x Hot air outlet vent
1x Cool air return vent
1x Bag containing hose clips, P clips, screws fuse & holder etc....
Instruction and installation booklet with fitting template

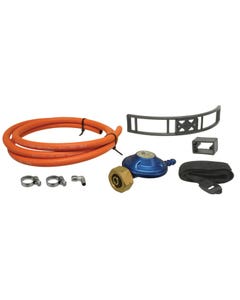

You will also require an appropriate gas bottle, regulator and hose/pipe fittings. See parts numbers AC819001, AC819002, and AC819003 for fitting kits. AC819004 for the optional vehicle in motion bracket and AC819005 for the extra air vent kit.

The HS2000 heater is an automatic thermostatically controlled blown air heating system fuelled by propane, butane, or LPG gas. Heatsource is designed for a variety of automotive and marine applications as a source of heat totally independent of the engine.

Propex Heatsource blown air systems are used in many applications throughout the world; these include Motorhomes, Caravans, Boats, Cranes, Horseboxes, and Mobile Workshops etc.

The HS2000 is supplied as standard with a solid state electronic thermostat that automatically switches the unit on and off to maintain the desired temperature. When the room temperature drops below the selected level, the Heatsource will automatically ignite and run until the cabin reaches the selected temperature. The thermostat is an easy to fit surface mount design. Unlike some heaters, there is minimal electric current consumption during ignition so cycling the Heatsource on and off does not have the effect of additional battery drain.

With forced air combustion and the Propex two stage stainless steel heat exchanger, the HS2000 is a clean and highly efficient way to heat your vehicle. Air for combustion is taken from outside and passed into the combustion chamber having been mixed with gas during three aeration stages; it is ignited automatically and heats up the large surface area of the heat exchanger. The Heatsource unit is totally room sealed and exhaust all products of combustion externally through the neat 22mm i.d stainless steels flue pipe. To add to the efficiency, cabin air is normally re-circulated in preference to using cold air from outside. The HS series heaters are also very efficient on electrical current consumption, the high quality motor/fan combination and innovative current reducing electronics, both of which have been improved in the latest versions, means that even the larger HS2800 draws less than 2 amps during normal operation.

Propex heaters are designed to be quiet in operation without compromising air throughput and heat output. There will always be some air noise from a system that produces a healthy throughput of air, however, by using high quality balanced fans and smooth enclosed motors with ball race bearings; noise is kept to a minimum. Noise is also unaffected by high voltage, a common occurrence with battery charges, solar panels etc. permanently wired. The microprocessor electronics regulates the motor voltage so that the fan speed does not alter from 10 to 15 volts.

Heatsource blown air heaters conform to the latest European standards for both the appliance and the electronics and during the rigorous testing, the focus is very much on safety. The heaters also have to comply with an enhanced version of the Electro Mechanical Compatibility Directive to ensure they do not interfere with other electronics and that they are immune from interference by other electronics.
The intelligent electronics are continuously monitoring the operation of the heater to make sure everything is operating correctly and safely. This includes monitoring of the flame, case temperature, combustion airflow, gas solenoid valve, and voltage. Should any of these stray outside of the predetermined levels, the heater will be switched off and the red light on the thermostat will indicate a fault by flashing a certain number of times.

The HS2000 is supplied with complete fitting kits to suit vehicle applications. In vehicles and caravans the unit is usually mounted in a bed-box or cupboard, flued downwards through the floor and out to the side of the vehicle using flexible stainless ducting. These ducts (22mm i.d for the HS2000 and 26mm i.d for the HS2800) are supplied as standard in lengths of 750mm. The ends are finished with neat stainless steel end-caps that comply with EN624. The heat is ducted to one or more outlets through tough highly flexible 60mm or 76mm ducting. In the case of multi-outlet installations, the first outlet is an open outlet with directional control and the rest are closable and are used in conjunction with the appropriate sized plastic Y-branches.
